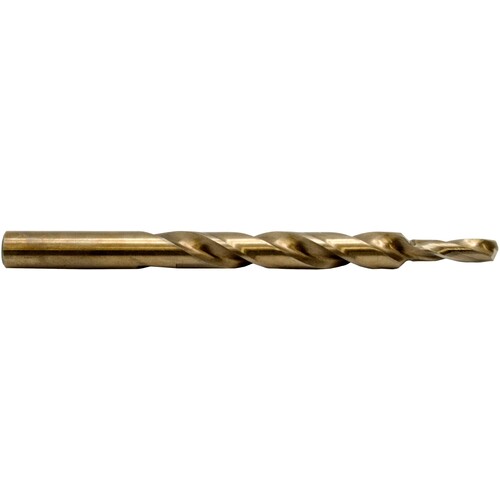

3/8-16 Dia-5-7/8 OAL-Bright-M42 Step Drill

| Cutting Diameter Minimum (DCN) | 0.316″ | Cutting Edge Material | HSSCo |
| Cutting Diameter Maximum (DCX) | 31/64″ | Coating | Uncoated |
| Length Chip Flute (LCF) | 4-3/8″ | For Screw Size | 3/8″-16 |
| Overall Length (OAL) | 5-7/8″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 31/64″ | Step Increments | 1″ |
| Number of Steps | 2 | Tool Type | Cap Screw Step Drill |
Product Features
| Remarks | •Step drills for holes-to-be-tapped
•Cobalt
•For drilling 45° chamfered holes to be tapped
•Produces approximately 70% thread | Country of Origin | USA |
Shipping Info
Package Weight
0.219
