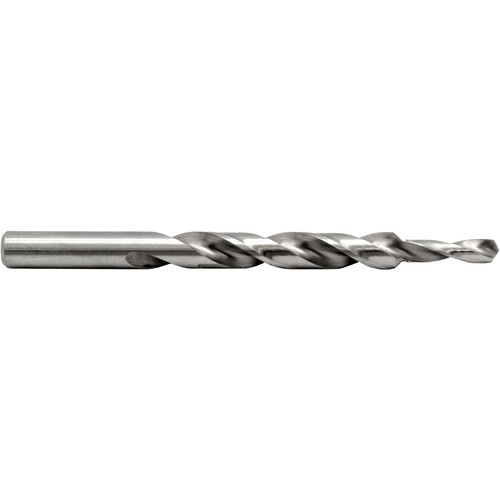

8-32 Dia-3-1/2 OAL-Bright-M42 Step Drill
| Cutting Diameter Minimum (DCN) | 0.136″ | Cutting Edge Material | HSSCo |
| Cutting Diameter Maximum (DCX) | 3/16″ | Coating | Uncoated |
| Length Chip Flute (LCF) | 2-5/16″ | For Screw Size | #8-32 |
| Overall Length (OAL) | 3-1/2″ | Measurement Type | Wire Gauge |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Step Increments | 1/2″ |
| Number of Steps | 2 | Tool Type | Cap Screw Step Drill |
Product Features
| Remarks | •Step drills for holes-to-be-tapped •Cobalt •For drilling 45° chamfered holes to be tapped •Produces approximately 70% thread | Country of Origin | USA |
Shipping Info
Package Weight
0.039
