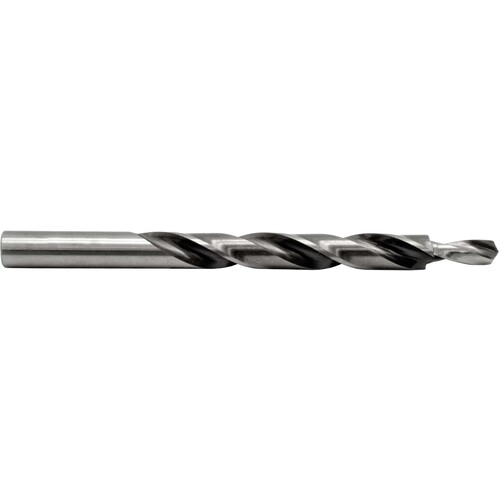

#6 Dia-4 OAL-HSS Step Drill
| Decimal Equivalent | 0.204″ | Number of Steps | 2 |
| Cutting Diameter Minimum (DCN) | 0.15″ | Cutting Edge Material | HSS |
| Cutting Diameter Maximum (DCX) | 1/4″ | For Screw Size | #6 |
| Length Chip Flute (LCF) | 2-3/4″ | Measurement Type | Wire Gauge |
| Overall Length (OAL) | 4″ | Step Diameter Length (SDL) | 1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Tool Type | Cap Screw Step Drill |
Product Features
| Remarks | •Step drills for standard cap screws •For drilling and counterboring cap screw clearance holes •One drill does two jobs in a single pass •Can be easily resharpened and are easily modified for any special length of step | Country of Origin | USA |
Shipping Info
Package Length
4.45000
Package Width
.63000
Package Height
.63000
Package Weight
0.044
