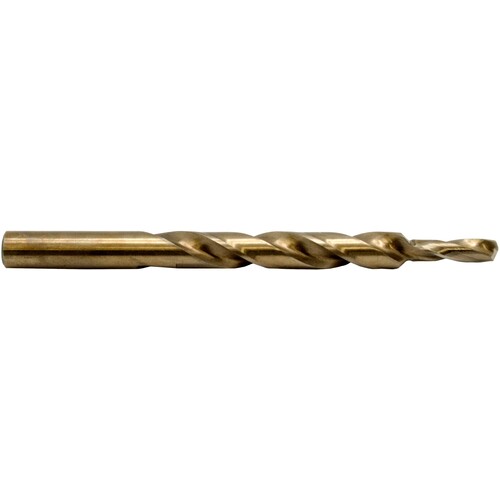

5/16-18 Dia-5-1/4 OAL-Bright-M42 Step Drill
| Cutting Diameter Minimum (DCN) | 0.261″ | Cutting Edge Material | HSSCo |
| Cutting Diameter Maximum (DCX) | 13/32″ | Coating | Uncoated |
| Length Chip Flute (LCF) | 3-7/8″ | For Screw Size | 5/16″-18 |
| Overall Length (OAL) | 5-1/4″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 13/32″ | Step Increments | 15/16″ |
| Number of Steps | 2 | Tool Type | Cap Screw Step Drill |
Product Features
| Remarks | •Step drills for holes-to-be-tapped •Cobalt •For drilling 45° chamfered holes to be tapped •Produces approximately 70% thread | Country of Origin | USA |
Shipping Info
Package Weight
0.124
