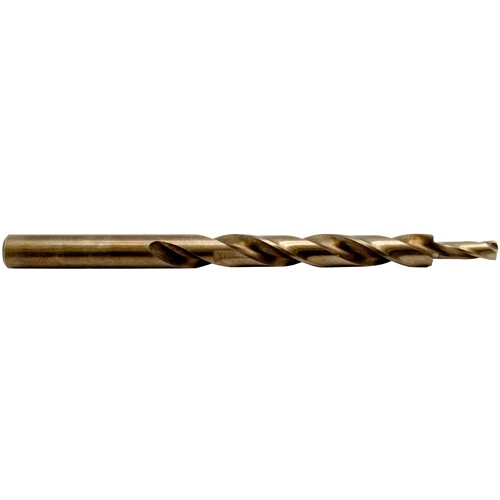

1/2 Dia-9-7/8 OAL-M42 Step Drill

| Decimal Equivalent | 0.5″ | Number of Steps | 2 |
| Cutting Diameter Minimum (DCN) | 17/32″ | Cutting Edge Material | HSSCo |
| Cutting Diameter Maximum (DCX) | 25/32″ | For Screw Size | 1/2″ |
| Length Chip Flute (LCF) | 6″ | Measurement Type | Inch |
| Overall Length (OAL) | 9-7/8″ | Step Diameter Length (SDL) | 1″ |
| Connection Diameter Machine Side (DCONMS) | 25/32″ | Tool Type | Cap Screw Step Drill |
Product Features
| Remarks | •For drilling and counterboring cap screw clearance holes
•One drill does two jobs in a single pass
•They can be easily resharpened and are easily modified for any special length of step. | Country of Origin | USA |
Shipping Info
Package Weight
0.219
