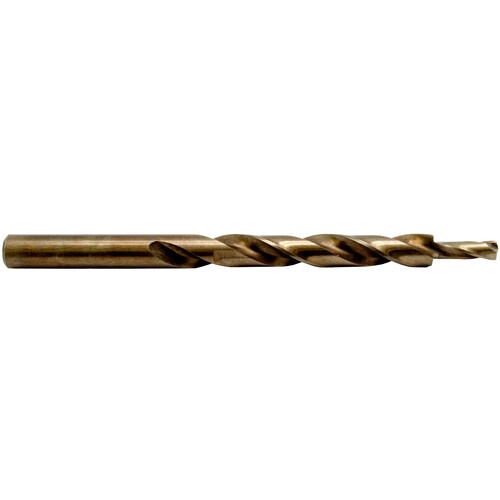

5/16 Dia-6 OAL-M42 Step Drill
| Decimal Equivalent | 0.3125″ | Number of Steps | 2 |
| Cutting Diameter Minimum (DCN) | 11/32″ | Cutting Edge Material | HSSCo |
| Cutting Diameter Maximum (DCX) | 1/2″ | For Screw Size | 5/16″ |
| Length Chip Flute (LCF) | 4-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 6″ | Step Diameter Length (SDL) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Tool Type | Cap Screw Step Drill |
Product Features
| Remarks | •For drilling and counterboring cap screw clearance holes •One drill does two jobs in a single pass •They can be easily resharpened and are easily modified for any special length of step. | Country of Origin | USA |
Shipping Info
Package Length
7.00000
Package Width
1.00000
Package Height
1.00000
Package Weight
0.276
