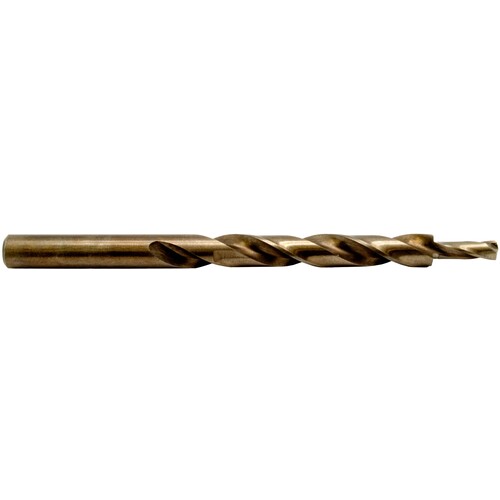

1/4 Dia-5-1/4 OAL-M42 Step Drill
| Decimal Equivalent | 0.25″ | Number of Steps | 2 |
| Cutting Diameter Minimum (DCN) | 9/32″ | Cutting Edge Material | HSSCo |
| Cutting Diameter Maximum (DCX) | 13/32″ | For Screw Size | 1/4″ |
| Length Chip Flute (LCF) | 3-7/8″ | Measurement Type | Inch |
| Overall Length (OAL) | 5-1/4″ | Step Diameter Length (SDL) | 11/16″ |
| Connection Diameter Machine Side (DCONMS) | 13/32″ | Tool Type | Cap Screw Step Drill |
Product Features
| Remarks | •For drilling and counterboring cap screw clearance holes •One drill does two jobs in a single pass •They can be easily resharpened and are easily modified for any special length of step. | Country of Origin | USA |
Shipping Info
Package Length
5.80000
Package Width
.64000
Package Height
.64000
Package Weight
0.15
