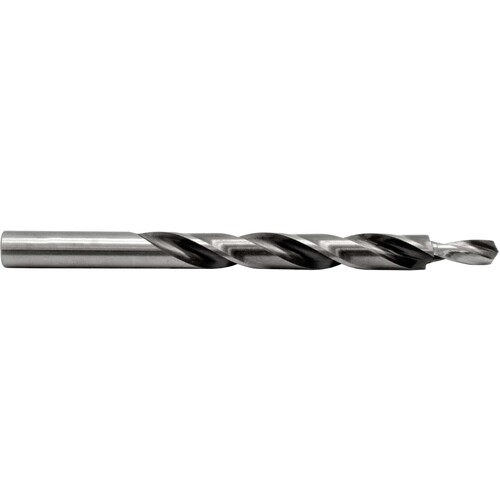

#10 Dia-4-3/4 OAL-HSS Step Drill

| Decimal Equivalent | 0.1935″ | Number of Steps | 2 |
| Cutting Diameter Minimum (DCN) | 0.204″ | Cutting Edge Material | HSS |
| Cutting Diameter Maximum (DCX) | Q | For Screw Size | #10 |
| Length Chip Flute (LCF) | 3-7/16″ | Measurement Type | Wire Gauge |
| Overall Length (OAL) | 4-3/4″ | Step Diameter Length (SDL) | 5/8″ |
| Connection Diameter Machine Side (DCONMS) | Q | Tool Type | Cap Screw Step Drill |
Product Features
| Remarks | •Step drills for standard cap screws
•For drilling and counterboring cap screw clearance holes
•One drill does two jobs in a single pass
•Can be easily resharpened and are easily modified for any special length of step | Country of Origin | USA |
Shipping Info
Package Length
5.40000
Package Width
.77000
Package Height
.77000
Package Weight
0.1
