4375 .6250.1094 2.1093 Keyseat Cutter RH10FL

‹ ›

4375 .6250.1094 2.1093 Keyseat Cutter RH10FL

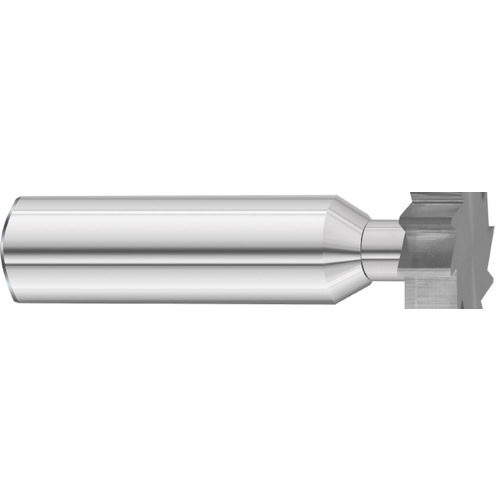

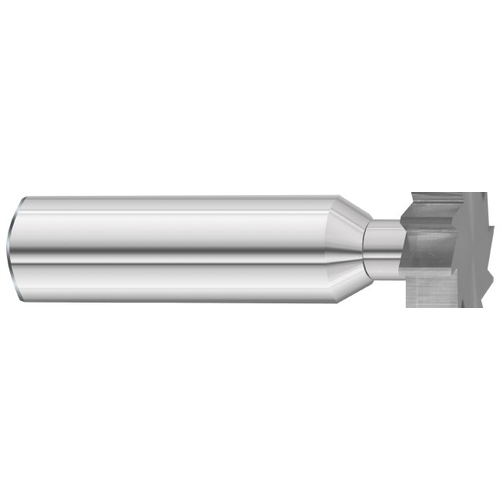

‎Keyseat Cutter; 5/8″ Dia. × 1/2″ Shank Dia. × 7/64″ CW × 2-7/64″ OAL ; 10 Teeth ; Carbide ; Round Shank ; Uncoated

Item # FUL 43910

Brand: Fullerton Tool

MFG #: 43910

Legacy Part #: FT8743910

Trade Name: 4375 Keyseat Cutter

Quantity Available

Cutting Diameter (DC)

5/8″

Cutting Direction (HAND)

Right Hand

Connection Diameter Machine Side (DCONMS)

1/2″

Cutting Edge Material

Carbide

Overall Length (OAL)

‎2-7/64″

Coating

Uncoated

Number of Teeth

Shank Type

Round

Cutting Width (CW)

7/64″

Style

Woodruff Keyseat

Product Features

Remarks

‎

Carbide Keyseat Cutters (Woodruff Cutter)

Straight Flutes

Nominal Diameters

American Standard Face Widths

.5000 Inch Diameter Steel Shank

.3750 to 1.5000 Inch stocked

Standard Uncoated

Inch Based Tools

Dura Carb III

.5000 Diameter Shank Tolerance: +.0005″ -.0005″ / +.013mm -.013mm

Cutting Head Diameter Tolerance: .3750 to .7500 Dia. - +.010″/+.015″ / .8750 to 1.5000 Dia. - +.012″/+.017″

Face Width Tolerance: +.0000″ -.0005″

Neck Length: .2500″

1.1250–1.5000 Cutter Diameter are Solid Carbide

Country of Origin

USA

Shipping Info

Package Weight

0.145
