MG 10098 D20 W12 MT8

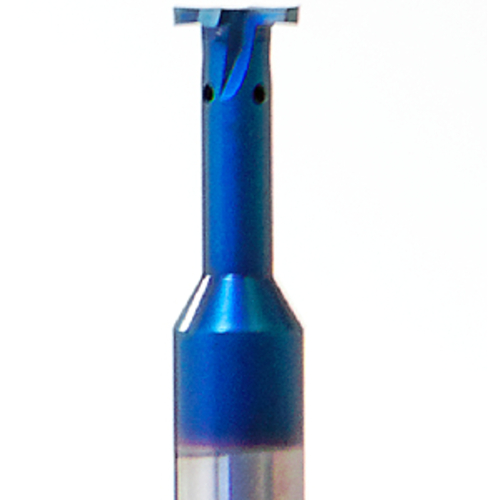

Keyseat Cutter; 9.8 mm Dia. × 10 mm Shank Dia. × 1 mm CW × 73 mm OAL ; 4 Teeth ; Carbide ; TiAlN
| Cutting Diameter (DC) | 9.8 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Cutting Edge Material | Carbide |
| Overall Length (OAL) | 73 mm | Coating | TiAlN |
| Corner Radius (RE) | 0.1 mm | Style | GROOVING |
| Number of Teeth | 4 | Cutting Position | Internal |
| Cutting Width (CW) | 1 mm | Cutting Length | 20.1 mm |
| Cutting Direction (HAND) | | Left Hand | Right Hand | | Measurement Type | Metric |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0
