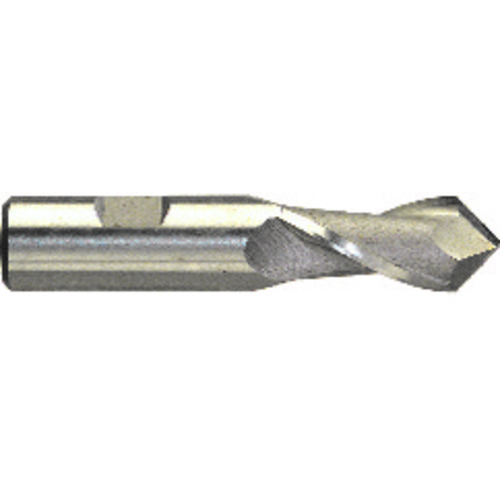

1980 DRILL-MILL 1/4 X
Chamfer Mill; 1/4″ Dia. × 5/8″ LU × 5/8″ LOC × 2-5/16″ OAL × 3/8″ Shank Dia. ; 2 FL ; 90 Degrees ; HSSCo ; Uncoated ; Series 1980
| Cutting Diameter (DC) | 1/4″ | Cutting Edge Material | HSSCo |
| Decimal Equivalent | 0.25″ | Coating | Uncoated |
| Usable Length (LU) | 5/8″ | Shank Type | Weldon Flat |
| Flute Count (NOF) | 2 | Style | Drill/Mill |
| Depth of Cut Maximum (APMX) | 5/8″ | End Shape | Drill Point |
| Overall Length (OAL) | 2-5/16″ | Tool Type | Single End |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Series/List # | 1980 |
| Point Angle (SIG) | 90 Degrees |
Product Features
| Remarks | •DRILL-MILL •Specially designed to perform both drilling and milling operations with the same tool in vertical milling machine applications •Increased productivity with fewer tool changes •DRILL-MILL performs •drilling •spotting •countersinking •chamfering •slotting •side milling •profile milling •other drilling & milling operations | Country of Origin | USA |
Shipping Info
Package Length
3.10000
Package Width
.50000
Package Height
.50000
Package Weight
0.06
