DM-250-490X BOR TL

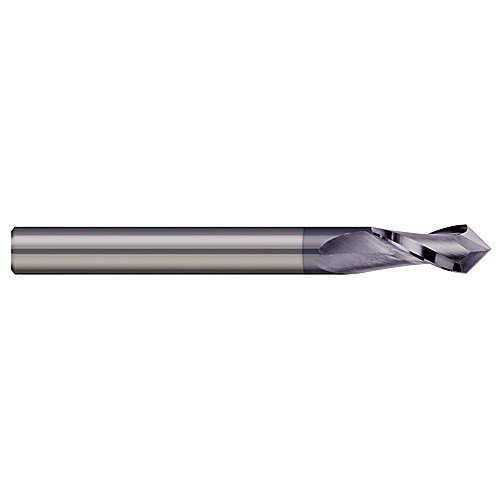

Chamfer Mill; 1/4″ Dia. × 3/4″ LU × 3/4″ LOC × 2-1/2″ OAL × 1/4″ Shank Dia. ; 4 FL ; 90 Degrees ; AlTiN
| Cutting Diameter (DC) | 1/4″ | Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Decimal Equivalent | 0.25″ | Point Angle (SIG) | 90 Degrees |
| Usable Length (LU) | 3/4″ | Coating | AlTiN |
| Flute Count (NOF) | 4 | End Shape | Pointed |
| Flute Helix Angle (FHA) | 30 Degrees | Length Group | 3D |
| Depth of Cut Maximum (APMX) | 3/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ |
Product Features
| Remarks | •Solid Carbide 2 or 4 Flute 90° Point Angle Drill Point End Mills 30° Right Hand Spiral •Tolerance +.000 -.002 •This new design allows many milling and drill operations not presently done with a conventional end mill • Drilling • Profile Milling • NC Milling • Chamfering | Country of Origin | USA |
Shipping Info
Package Length
2.44090
Package Width
.39370
Package Height
.31500
Package Weight
0.058
