DM-125-290 BOR TL

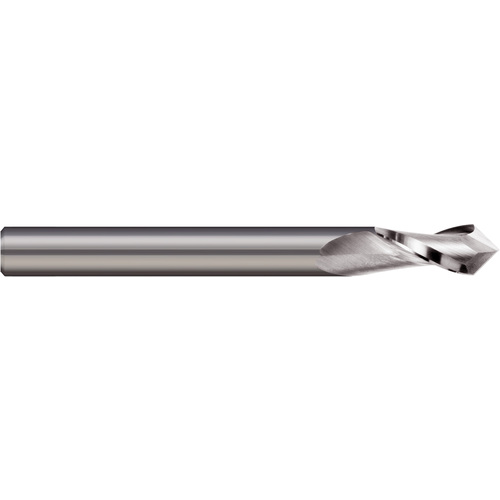

Chamfer Mill; 1/8″ Dia. × 1/2″ LU × 1/2″ LOC × 1-1/2″ OAL × 1/8″ Shank Dia. ; 2 FL ; 90 Degrees ; Uncoated
| Cutting Diameter (DC) | 1/8″ | Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Decimal Equivalent | 0.125″ | Point Angle (SIG) | 90 Degrees |
| Usable Length (LU) | 1/2″ | Coating | Uncoated |
| Flute Count (NOF) | 2 | End Shape | Pointed |
| Flute Helix Angle (FHA) | 30 Degrees | Length Group | 4D |
| Depth of Cut Maximum (APMX) | 1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 1-1/2″ |
Product Features
| Remarks | •Solid Carbide 2 or 4 Flute 90° Point Angle Drill Point End Mills 30° Right Hand Spiral •Tolerance +.000 -.002 •This new design allows many milling and drill operations not presently done with a conventional end mill • Drilling • Profile Milling • NC Milling • Chamfering | Country of Origin | USA |
Shipping Info
Package Length
1.75000
Package Width
.24000
Package Height
.24000
Package Weight
0.02
