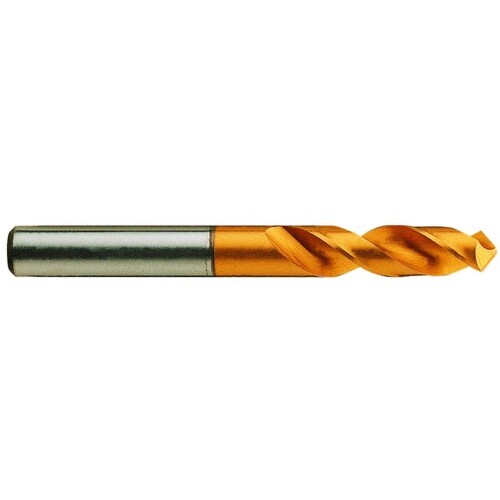

Screw Machine Drill; 8.5 mm Dia. × 8.5 mm Shank Dia. × 87 mm OAL × 37 mm Flute Length ; 120 Degrees ; HSS EX ; TiN ; Series DJ543
Screw Machine Drill; 8.5 mm Dia. × 8.5 mm Shank Dia. × 87 mm OAL × 37 mm Flute Length ; 120 Degrees ; HSS-EX ; TiN ; Series DJ543
| Measurement Type | Metric | Flute Length | 37 mm |
| Drill Bit Size / Cutting Diameter (DC) | 8.5 mm | Helix Angle | 38 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.3346″ | Flute Count (NOF) | 2 |
| Decimal Equivalent | 0.3346″ | Overall Length (OAL) | 87 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.5 mm | Shank Standard | h7 |
| Angle | 120 Degrees | Shank Type | Round |
| Applicable Material | | Steel | Stainless Steel | | Standard | DIN6535-HA |
| Coating | TiN | Tool Type | Twist Drill |
| L to D Ratio | Stub | Connection Diameter Machine Side (DCONMS) | 8.5 mm |
| Cutting Depth | 37 mm | Series/List # | DJ543 |
| Cutting Edge Material | HSS-EX |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.625
Package Width
0.5
Package Height
0.375
Package Weight
0.072
