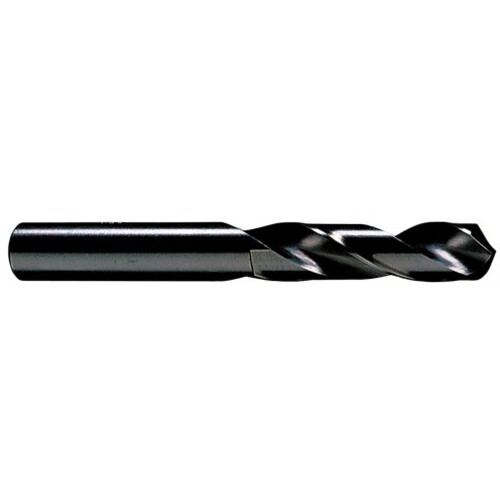

12.50 MM HSS SCREW
Screw Machine Drill; 12.5 mm Dia. × 12.5 mm Shank Dia. × 102 mm OAL × 51 mm Flute Length ; HSS ; Black Oxide
| Measurement Type | Metric | Cutting Edge Material | HSS |
| Drill Bit Size / Cutting Diameter (DC) | 12.5 mm | Flute Length | 51 mm |
| Decimal Equivalent | 0.4921 | Helix Angle | CW |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 12.5 mm | Overall Length (OAL) | 102 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Shank Type | Round |
| Shape | Screw Machine | Standard | DIN 1897 |
| Coating | Black Oxide | Point Shape | Split Point |
| Cutting Depth | 51 mm | Connection Diameter Machine Side (DCONMS) | 12.5 mm |
Product Features
| Family Description | E-code # 4ASM12.5 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.163
