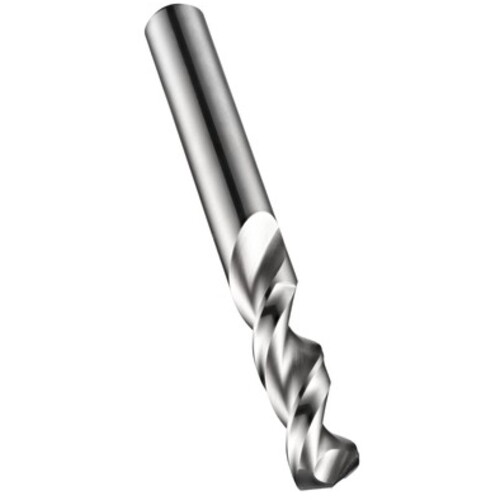

7/16 Dormer HSS-E Bright PFX 130 PFX Stub Drill Short DIN/ANSI E-code # A9207/16
Screw Machine Drill; 7/16″ Dia. × 7/16″ Shank Dia. × 87 mm OAL × 52 mm Flute Length ; HSSCo ; Uncoated
Additional Tariff Surcharge of 8 %
| Measurement Type | Inch | Cutting Edge Material | HSSCo |
| Drill Bit Size / Cutting Diameter (DC) | 7/16″ | Flute Length | 52 mm |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 7/16″ | Helix Angle | CW |
| Decimal Equivalent | 0.4375 | Overall Length (OAL) | 87 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Shank Type | Morse Taper |
| Shape | Taper Shank | Standard | DIN|ANSI |
| Coating | Uncoated | Connection Diameter Machine Side (DCONMS) | 7/16″ |
Product Features
| Family Description | E-code # A9207/16 | Country of Origin | France |
Shipping Info
Package Weight
1.985
