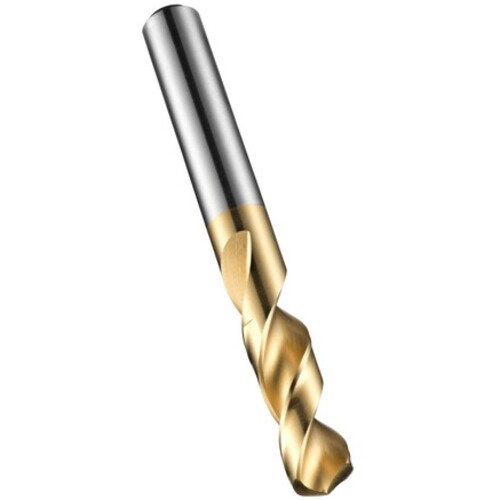

8.3 MM Dormer HSS TiN ADX 130 ADX Stub Drill Short DIN 1897 E-code # A5208.3
Screw Machine Drill; 8.3 mm Dia. × 16 mm Shank Dia. × 79 mm OAL × 37 mm Flute Length ; HSS ; TiN
Additional Tariff Surcharge of 8 %
| Measurement Type | Metric | Flute Length | 37 mm |
| Drill Bit Size / Cutting Diameter (DC) | 8.3 mm | Helix Angle | CW |
| Decimal Equivalent | 0.3268 | Overall Length (OAL) | 79 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.3 mm | Shank Type | Round |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Standard | DIN 1897 |
| Coating | TiN | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Cutting Edge Material | HSS |
Product Features
| Family Description | E-code # A5208.3 | Country of Origin | France |
Shipping Info
Package Weight
1.096
