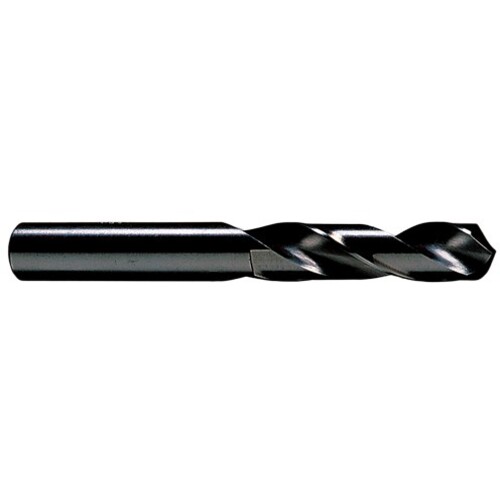

6.20 MM HSS SCREW
Screw Machine Drill; 6.2 mm Dia. × 6.2 mm Shank Dia. × 70 mm OAL × 31 mm Flute Length ; HSS ; Black Oxide
| Measurement Type | Metric | Cutting Edge Material | HSS |
| Drill Bit Size / Cutting Diameter (DC) | 6.2 mm | Flute Length | 31 mm |
| Decimal Equivalent | 0.2441 | Helix Angle | CW |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.2 mm | Overall Length (OAL) | 70 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Shank Type | Round |
| Shape | Screw Machine | Standard | DIN 1897 |
| Coating | Black Oxide | Point Shape | Split Point |
| Cutting Depth | 31 mm | Connection Diameter Machine Side (DCONMS) | 6.2 mm |
Product Features
| Family Description | E-code # 4ASM6.2 | Country of Origin | France |
Shipping Info
Package Weight
0.029
