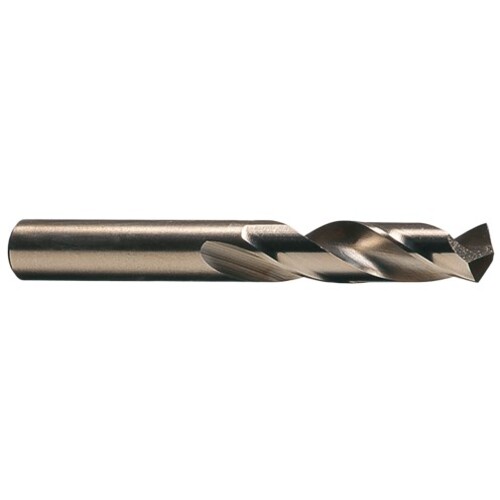

12.00 MM Precision Twist Drill HSS-E Bronze 135 Stub Drill Short DIN 1897 Series 4ASMCO E-code # 4ASMCO12.0
Screw Machine Drill; 12 mm Dia. × 12 mm Shank Dia. × 102 mm OAL × 51 mm Flute Length ; HSSCo ; Bronze Oxide ; Series 4ASMCO
| Measurement Type | Metric | Flute Length | 51 mm |
| Drill Bit Size / Cutting Diameter (DC) | 12 mm | Helix Angle | CW |
| Decimal Equivalent | 0.4724 | Overall Length (OAL) | 102 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 12 mm | Shank Type | Round |
| Applicable Material | Aluminum|Cast Iron|Copper|Exotic Alloys|Hard Materials|Hardened Steel|Plastics|Stainless Steel|Steel|Titanium | Standard | DIN 1897 |
| Shape | Screw Machine | Point Shape | Split Point |
| Coating | Bronze Oxide | Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Depth | 51 mm | Series/List # | 4ASMCO |
| Cutting Edge Material | HSSCo |
Product Features
| Family Description | E-code # 4ASMCO12.0 | Country of Origin | USA |
Shipping Info
Package Weight
0.1502
