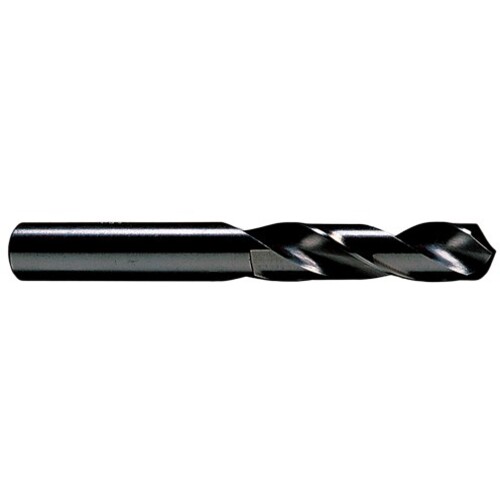

7.20 MM Precision Twist Drill HSS Steam Oxide 135 NAS907C Stub Drill Short DIN 1897 Series 4ASM E-code # 4ASM7.2
Screw Machine Drill; 7.2 mm Dia. × 7.2 mm Shank Dia. × 74 mm OAL × 34 mm Flute Length ; HSS ; Black Oxide
Additional Tariff Surcharge of 8 %
| Measurement Type | Metric | Cutting Edge Material | HSS |
| Drill Bit Size / Cutting Diameter (DC) | 7.2 mm | Flute Length | 34 mm |
| Decimal Equivalent | 0.2835 | Helix Angle | CW |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.2 mm | Overall Length (OAL) | 74 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Shank Type | Round |
| Shape | Screw Machine | Standard | DIN 1897 |
| Coating | Black Oxide | Point Shape | Split Point |
| Cutting Depth | 34 mm | Connection Diameter Machine Side (DCONMS) | 7.2 mm |
Product Features
| Family Description | E-code # 4ASM7.2 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.04
