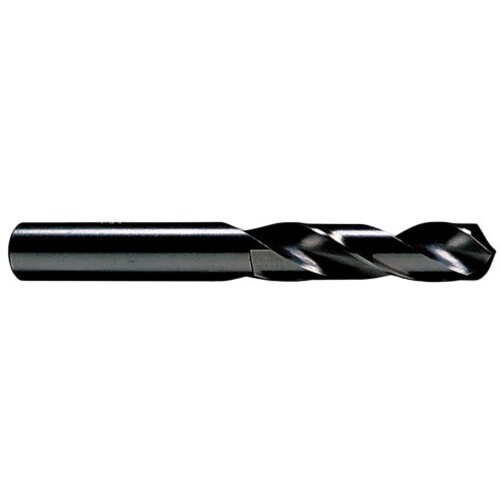

8.10 MM Precision Twist Drill HSS Steam Oxide 135 NAS907C Stub Drill Short DIN 1897 Series 4ASM E-code # 4ASM8.1
Screw Machine Drill; 8.1 mm Dia. × 8.1 mm Shank Dia. × 79 mm OAL × 37 mm Flute Length ; HSS ; Black Oxide
| Measurement Type | Metric | Cutting Edge Material | HSS |
| Drill Bit Size / Cutting Diameter (DC) | 8.1 mm | Flute Length | 37 mm |
| Decimal Equivalent | 0.3189 | Helix Angle | CW |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.1 mm | Overall Length (OAL) | 79 mm |
| Applicable Material | Aluminum|Cast Iron|Copper|Exotic Alloys|Hard Materials|Hardened Steel|Plastics|Stainless Steel|Steel|Titanium | Shank Type | Round |
| Shape | Screw Machine | Standard | DIN 1897 |
| Coating | Black Oxide | Point Shape | Split Point |
| Cutting Depth | 37 mm | Connection Diameter Machine Side (DCONMS) | 8.1 mm |
Product Features
| Family Description | E-code # 4ASM8.1 | Country of Origin | BR |
Shipping Info
Package Weight
0.0552
