5.5MM COBALT SCREW

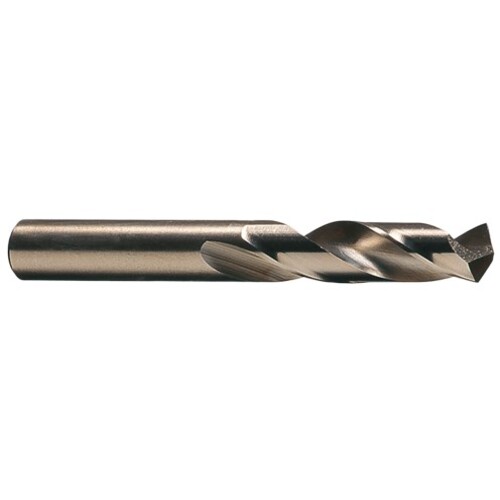

Screw Machine Drill; 5.5 mm Dia. × 5.5 mm Shank Dia. × 66 mm OAL × 28 mm Flute Length ; HSSCo ; Bronze Oxide ; Series 4ASMCO
Additional Tariff Surcharge of 8 %
| Measurement Type | Metric | Flute Length | 28 mm |
| Drill Bit Size / Cutting Diameter (DC) | 5.5 mm | Helix Angle | CW |
| Decimal Equivalent | 0.2165 | Overall Length (OAL) | 66 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.5 mm | Shank Type | Round |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Standard | DIN 1897 |
| Shape | Screw Machine | Point Shape | Split Point |
| Coating | Bronze Oxide | Connection Diameter Machine Side (DCONMS) | 5.5 mm |
| Cutting Depth | 28 mm | Series/List # | 4ASMCO |
| Cutting Edge Material | HSSCo |
Product Features
| Family Description | E-code # 4ASMCO5.5 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.002
