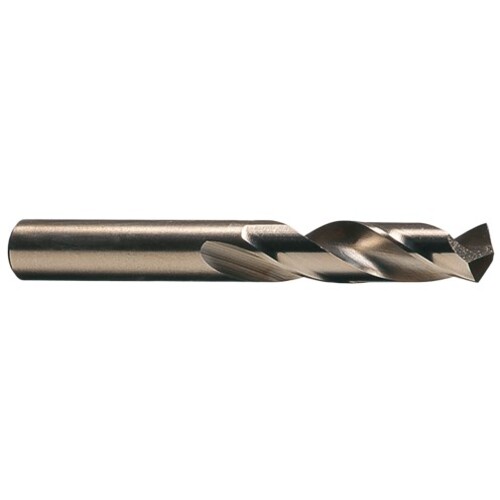

3.30 MM Precision Twist Drill HSS-E Bronze 135 Stub Drill Short DIN 1897 Series 4ASMCO E-code # 4ASMCO3.3
Screw Machine Drill; 3.3 mm Dia. × 3.3 mm Shank Dia. × 49 mm OAL × 18 mm Flute Length ; HSSCo ; Bronze Oxide
| Measurement Type | Metric | Cutting Edge Material | HSSCo |
| Drill Bit Size / Cutting Diameter (DC) | 3.3 mm | Flute Length | 18 mm |
| Decimal Equivalent | 0.1299 | Helix Angle | CW |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.3 mm | Overall Length (OAL) | 49 mm |
| Applicable Material | Aluminum|Cast Iron|Copper|Exotic Alloys|Hard Materials|Hardened Steel|Plastics|Stainless Steel|Steel|Titanium | Shank Type | Round |
| Shape | Screw Machine | Standard | DIN 1897 |
| Coating | Bronze Oxide | Point Shape | Split Point |
| Cutting Depth | 18 mm | Connection Diameter Machine Side (DCONMS) | 3.3 mm |
Product Features
| Family Description | E-code # 4ASMCO3.3 | Country of Origin | BR |
Shipping Info
Package Weight
0.0066
