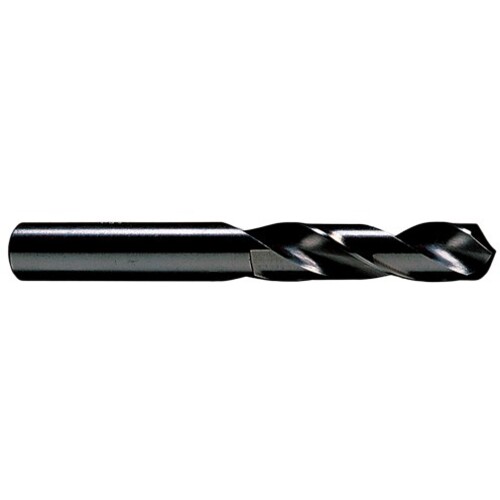

6.60 MM Precision Twist Drill HSS Steam Oxide 135 NAS907C Stub Drill Short DIN 1897 Series 4ASM E-code # 4ASM6.6
Screw Machine Drill; 6.6 mm Dia. × 6.6 mm Shank Dia. × 70 mm OAL × 31 mm Flute Length ; HSS ; Black Oxide
| Measurement Type | Metric | Cutting Edge Material | HSS |
| Drill Bit Size / Cutting Diameter (DC) | 6.6 mm | Flute Length | 31 mm |
| Decimal Equivalent | 0.2598 | Helix Angle | CW |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.6 mm | Overall Length (OAL) | 70 mm |
| Applicable Material | Aluminum|Cast Iron|Copper|Exotic Alloys|Hard Materials|Hardened Steel|Plastics|Stainless Steel|Steel|Titanium | Shank Type | Round |
| Shape | Screw Machine | Standard | DIN 1897 |
| Coating | Black Oxide | Point Shape | Split Point |
| Cutting Depth | 31 mm | Connection Diameter Machine Side (DCONMS) | 6.6 mm |
Product Features
| Family Description | E-code # 4ASM6.6 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.033
