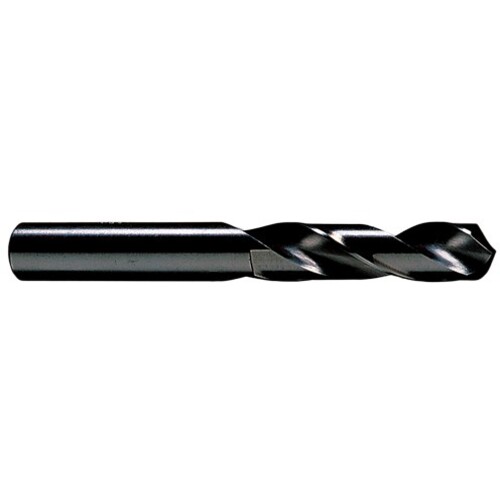

9.50 MM HSS SCREW
Screw Machine Drill; 9.5 mm Dia. × 9.5 mm Shank Dia. × 84 mm OAL × 40 mm Flute Length ; HSS ; Black Oxide
Additional Tariff Surcharge of 8 %
| Measurement Type | Metric | Cutting Edge Material | HSS |
| Drill Bit Size / Cutting Diameter (DC) | 9.5 mm | Flute Length | 40 mm |
| Decimal Equivalent | 0.3740 | Helix Angle | CW |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.5 mm | Overall Length (OAL) | 84 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Shank Type | Round |
| Shape | Screw Machine | Standard | DIN 1897 |
| Coating | Black Oxide | Point Shape | Split Point |
| Cutting Depth | 40 mm | Connection Diameter Machine Side (DCONMS) | 9.5 mm |
Product Features
| Family Description | E-code # 4ASM9.5 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.196
