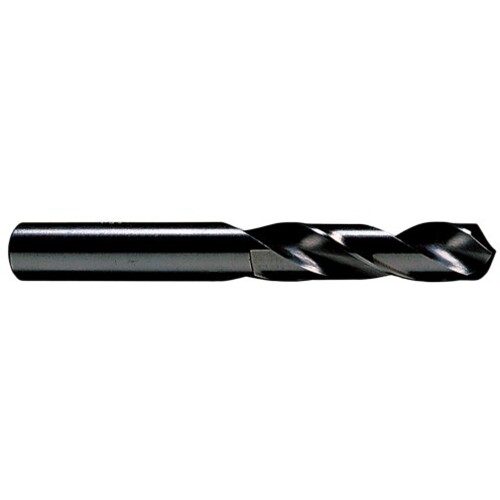

4.50 MM Precision Twist Drill HSS Steam Oxide 135 NAS907C Stub Drill Short DIN 1897 Series 4ASM E-code # 4ASM4.5
Screw Machine Drill; 4.5 mm Dia. × 4.5 mm Shank Dia. × 58 mm OAL × 24 mm Flute Length ; HSS ; Black Oxide
| Measurement Type | Metric | Cutting Edge Material | HSS |
| Drill Bit Size / Cutting Diameter (DC) | 4.5 mm | Flute Length | 24 mm |
| Decimal Equivalent | 0.1772 | Helix Angle | CW |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.5 mm | Overall Length (OAL) | 58 mm |
| Applicable Material | Aluminum|Cast Iron|Copper|Exotic Alloys|Hard Materials|Hardened Steel|Plastics|Stainless Steel|Steel|Titanium | Shank Type | Round |
| Shape | Screw Machine | Standard | DIN 1897 |
| Coating | Black Oxide | Point Shape | Split Point |
| Cutting Depth | 24 mm | Connection Diameter Machine Side (DCONMS) | 4.5 mm |
Product Features
| Family Description | E-code # 4ASM4.5 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.013
