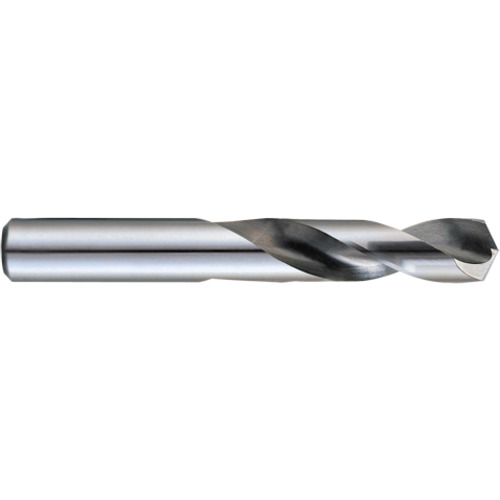

Screw Machine Drill; 3/64″ Dia. × 3/64″ Shank Dia. × 1-3/8″ OAL × 1/2″ Flute Length ; 135 Degrees ; HSS Co8 ; Bright ; Series D2146
Screw Machine Drill; 3/64″ Dia. × 3/64″ Shank Dia. × 1-3/8″ OAL × 1/2″ Flute Length ; 135 Degrees ; HSSCo8 ; Uncoated ; Series D2146
| Measurement Type | Inch | Flute Length | 1/2″ |
| Drill Bit Size / Cutting Diameter (DC) | 3/64″ | Helix Angle | 20-30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/64″ | Flute Count (NOF) | 2 |
| Decimal Equivalent | 0.0469″ | Overall Length (OAL) | 1-3/8″ |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 1.191 mm | Pack Size | 10 |
| Angle | 135 Degrees | Shank Type | Round |
| Applicable Material | | Steel | | Standard | ANSI |
| Coating | Uncoated | Connection Diameter Machine Side (DCONMS) | 3/64″ |
| Cutting Depth | 1/2″ | Series/List # | D2146 |
| Cutting Edge Material | HSSCo8 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.25
Package Width
0.75
Package Height
0.75
Package Weight
0.001
