NO.7 COB M42 SCREW MACH

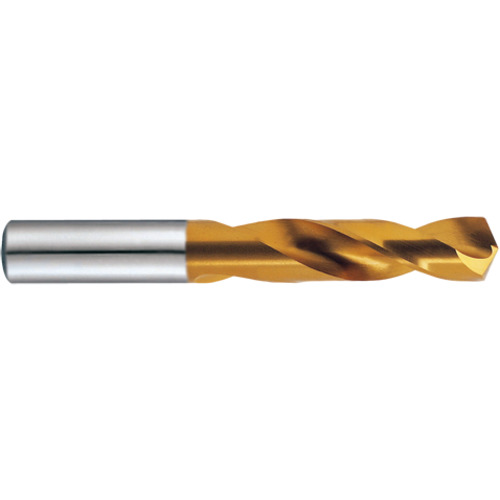

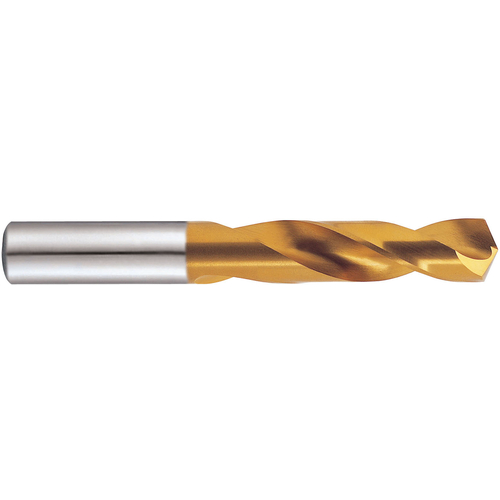

Screw Machine Drill; 0.201″ Dia. × 0.201″ Shank Dia. × 2-1/4″ OAL × 1-3/16″ Flute Length ; 135 Degrees ; HSSCo8 ; TiN ; Series D4148
| Measurement Type | Inch | Flute Length | 1-3/16″ |
| Drill Bit Size / Cutting Diameter (DC) | 0.201″ | Helix Angle | 20-30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.201″ | Flute Count (NOF) | 2 |
| Decimal Equivalent | 0.201″ | Overall Length (OAL) | 2-1/4″ |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.105 mm | Pack Size | 5 |
| Angle | 135 Degrees | Shank Type | Round |
| Applicable Material | | Steel | | Standard | ANSI |
| Coating | TiN | Connection Diameter Machine Side (DCONMS) | 0.201″ |
| Cutting Depth | 1-3/16″ | Series/List # | D4148 |
| Cutting Edge Material | HSSCo8 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.5
Package Width
1
Package Height
1
Package Weight
0.01
