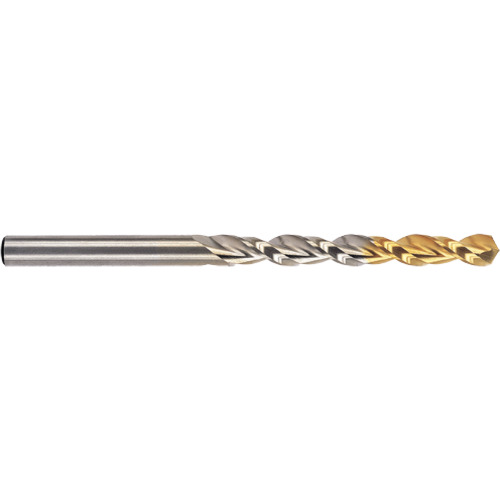

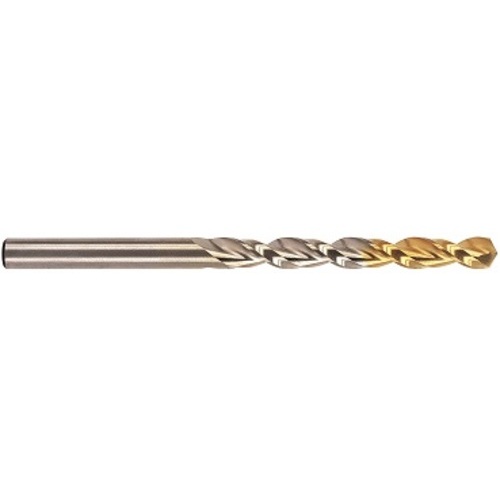

6.8MM M35 JL GOLD-P
Jobber Drill; 6.8 mm Dia. × 6.8 mm Shank Dia. × 109 mm OAL × 69 mm Flute Length ; 130 Degrees ; Jobber ; HSSCo5 ; TiN ; Series DLGP506
| Drill Bit Size / Cutting Diameter (DC) | 6.8 mm | Flute Length | 69 mm |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.2677″ | Helix Angle | 38 Degrees |
| Decimal Equivalent | 0.2677″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.8 mm | Standard | DIN 338 |
| Measurement Type | Metric | Connection Diameter Machine Side (DCONMS) | 6.8 mm |
| Angle | 130 Degrees | L Group | Jobber |
| Cutting Edge Material | HSSCo5 | Series/List # | DLGP506 |
| Applicable Material | | Steel | | Flute Count (NOF) | 2 |
| Coating | TiN | Overall Length (OAL) | 109 mm |
| Coolant Supply Property (CSP) | External |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
1.5
Package Height
1.5
Package Weight
0
