1361 HPC 7.80MM WL

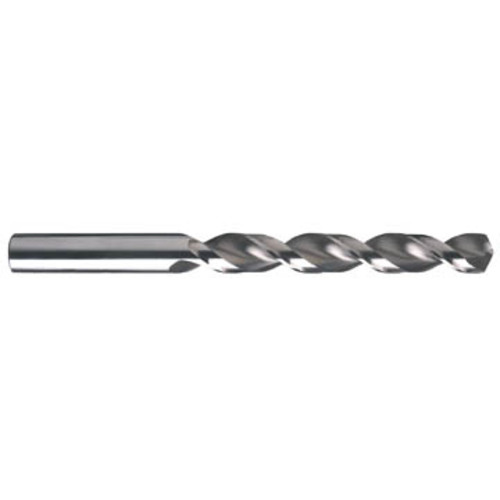

Jobber Drill; 7.8 mm Dia. × 7.8 mm Shank Dia. × 117 mm OAL × 75 mm Flute Length ; 130 Degrees ; Wide Land Parabolic Flute ; HSSCo ; Straw ; Series 1361
| Drill Bit Size / Cutting Diameter (DC) | 7.8 mm | Coolant Supply Property (CSP) | External |
| Decimal Equivalent | 0.3071″ | Flute Length | 75 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.8 mm | Point Shape | Self-Centering |
| Measurement Type | Metric | Shank Type | Round |
| Angle | 130 Degrees | Connection Diameter Machine Side (DCONMS) | 7.8 mm |
| Cutting Edge Material | HSSCo | Tool Type | HPC High Performance Drills |
| Flute Type | Wide Land Parabolic | Series/List # | 1361 |
| Coating | Straw | Overall Length (OAL) | 117 mm |
Product Features
| Remarks | •Jobber Length HPC Cobalt High Performance Wide Land Parabolic Flute Drills •Wide Land Parabolic Flute Drills •The next generation in parabolic flute design, are effective in a wider range of materials and applications than standard parabolic flute drills •An Enhanced Flute Design with reinforced web provides increased drill strength and rigidity, straighter closer tolerance holes, improved chip formation and evacuation, improved coolant flow to the drill point and higher speeds and feeds for increased productivity •Premium M35 Cobalt Steel •Offers increased hardness, toughness, wear resistance and heat resistance •Highly recommended for drilling tough, high tensile strength materials up to 35 Rc hardness and materials that generate higher cutting temperatures •Applications include high alloy steels, ferrous castings, titanium, inconel, stainless steels and other difficult-to-drill materials •Select the shortest drill possible for your application for maximum rigidity, hole accuracy and economy | Country of Origin | France |
Shipping Info
Package Length
7.88000
Package Width
.50000
Package Height
.50000
Package Weight
0.08
