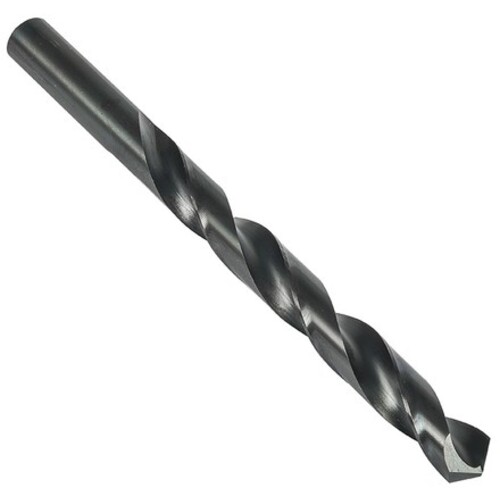

#24 Precision Twist Drill HSS Steam Oxide 118 NAS907A Jobber Drill ANSI Series R18A E-code # R18AN24
Jobber Drill; #24 Dia. × 3-1/8″ OAL × 2″ Flute Length ; 4xD ; HSS ; Black Oxide ; Series R18A
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | #24 | Helix Angle | CW |
| Decimal Equivalent | 0.1520 | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #24 | Standard | ANSI |
| Measurement Type | Wire Gauge | L Group | 4xD |
| Cutting Edge Material | HSS | Shape | Solid Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Tool Radius | 118 Degrees |
| Coating | Black Oxide | Series/List # | R18A |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 3-1/8″ |
| Flute Length | 2″ |
Product Features
| Family Description | E-code # R18AN24 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.999
