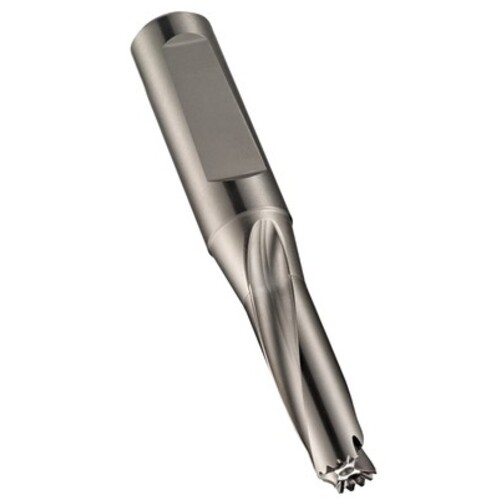

33.50 mm Dormer HSS Bright HYDRA Int. Coolant Hydra Body 3xD Short DORMER E-code # H85333.5
Jobber Drill; 33.5 mm Dia. × 40 mm Shank Dia. × 201.5 mm OAL × 116.5 mm Flute Length ; 3xD ; HSS ; Uncoated
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 33.5 mm | Flute Length | 116.5 mm |
| Decimal Equivalent | 1.32″ | Helix Angle | CW |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 33.5 mm | Shank Type | Weldon |
| Measurement Type | Metric | Standard | DIN 6535 HE / HB |
| Cutting Edge Material | HSS | Connection Diameter Machine Side (DCONMS) | 40 mm |
| Coating | Uncoated | L Group | 3xD |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 201.5 mm |
Product Features
| Family Description | E-code # H85333.5 | Country of Origin | Japan |
Shipping Info
Package Weight
30
