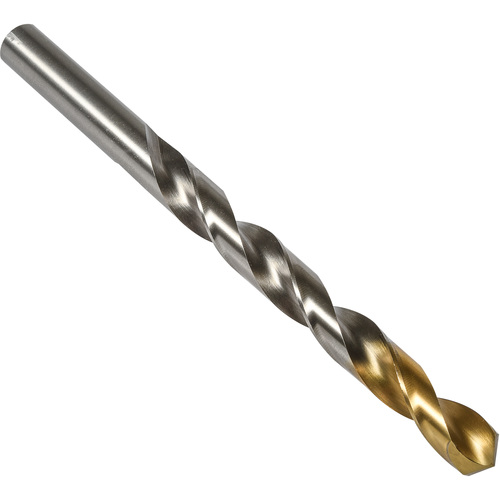

M HSS Drill - 4xD - ANSI - Bright/TiN - 118 Degree Split Point E-code # A012M
Jobber Drill; M Dia. x 0.2949″ Shank Dia. × 4-3/8″ OAL × 3-1/16″ Flute Length ; 118 Degrees ; 4xD ; HSS ; TiN ; Series A012
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | M | Flute Length | 3-1/16″ |
| Decimal Equivalent | 0.2950 | Helix Angle | CW |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | M | Point Shape | Split Point |
| Measurement Type | Letter | Shank Type | Round |
| Angle | 118 Degrees | Standard | ANSI |
| Cutting Edge Material | HSS | Connection Diameter Machine Side (DCONMS) | 0.2949″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | L Group | 4xD |
| Coating | TiN | Tool Type | Drill |
| Coolant Supply Property (CSP) | External | Series/List # | A012 |
| Cutting Depth | 3-1/16″ | Overall Length (OAL) | 4-3/8″ |
Product Features
| Family Description | E-code # A012M | Country of Origin | Brazil |
Shipping Info
Package Weight
0.058
