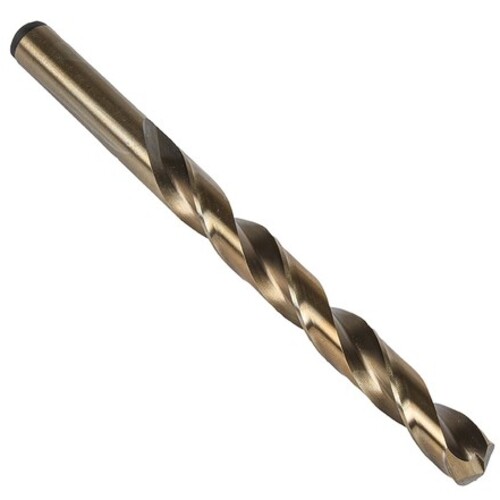

74 COBALT JOBBER DRILL
Jobber Drill; #74 Dia. × 0.023″ Shank Dia. × 1″ OAL × 1/4″ Flute Length ; 135 Degrees ; HSSCo ; Bronze Oxide
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | #74 | Coolant Supply Property (CSP) | External |
| Decimal Equivalent | 0.0225 | Cutting Depth | 1/4″ |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #74 | Flute Length | 1/4″ |
| Measurement Type | Wire Gauge | Point Shape | Standard |
| Angle | 135 Degrees | Shank Type | Round |
| Cutting Edge Material | HSSCo | Connection Diameter Machine Side (DCONMS) | 0.023″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Overall Length (OAL) | 1″ |
| Coating | Bronze Oxide |
Product Features
| Family Description | E-code # R18CON74 | Country of Origin | France |
Shipping Info
Package Length
1.01000
Package Width
.02000
Package Height
.02000
Package Weight
0.025
