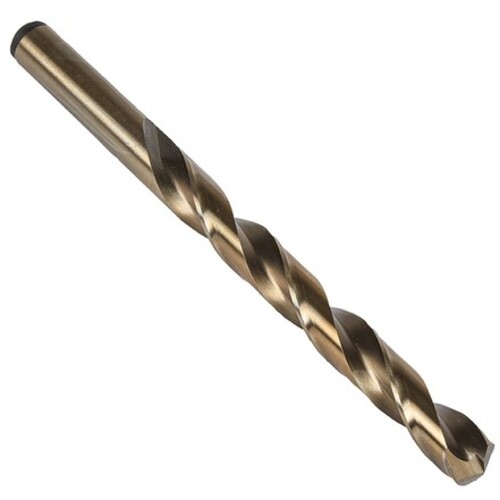

#10 HSS-E Bronze 135 NAS907J Jobber Drill DIN 338 Series R18CO E-code # R18CON10
Jobber Drill; #10 Dia. × 0.194″ Shank Dia. × 3-5/8″ OAL × 2-7/16″ Flute Length ; 135 Degrees ; HSSCo ; Bronze Oxide
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | #10 | Coolant Supply Property (CSP) | External |
| Decimal Equivalent | 0.1935 | Cutting Depth | 2-7/16″ |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #10 | Flute Length | 2-7/16″ |
| Measurement Type | Wire Gauge | Point Shape | Split |
| Angle | 135 Degrees | Shank Type | Round |
| Cutting Edge Material | HSSCo | Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Overall Length (OAL) | 3-5/8″ |
| Coating | Bronze Oxide |
Product Features
| Family Description | E-code # R18CON10 | Country of Origin | Brazil |
Shipping Info
Package Length
3.67000
Package Width
.19000
Package Height
.19000
Package Weight
0.03
