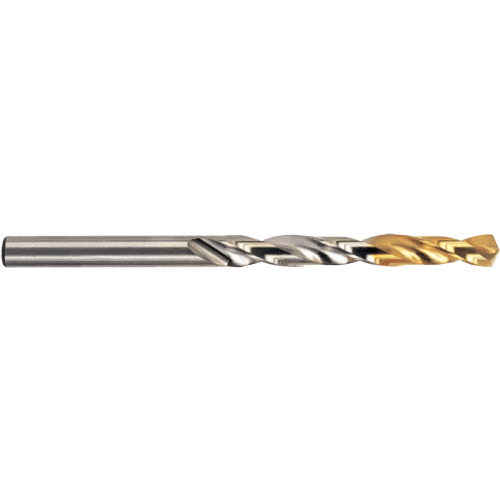

17/64 COB M42 GOLD P
Jobber Drill; 17/64″ Dia. × 17/64″ Shank Dia. × 4-1/8″ OAL × 2-7/8″ Flute Length ; 135 Degrees ; Jobber ; HSSCo8 ; TiN ; Series D2GP185
| Drill Bit Size / Cutting Diameter (DC) | 17/64″ | Flute Length | 2-7/8″ |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 17/64″ | Helix Angle | 30 Degrees |
| Decimal Equivalent | 0.2656″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.747 mm | Standard | ANSI |
| Measurement Type | Inch | Connection Diameter Machine Side (DCONMS) | 17/64″ |
| Angle | 135 Degrees | L Group | Jobber |
| Cutting Edge Material | HSSCo8 | Series/List # | D2GP185 |
| Applicable Material | | Steel | | Flute Count (NOF) | 2 |
| Coating | TiN | Overall Length (OAL) | 4-1/8″ |
| Coolant Supply Property (CSP) | External |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
1.5
Package Height
1.5
Package Weight
0.05
