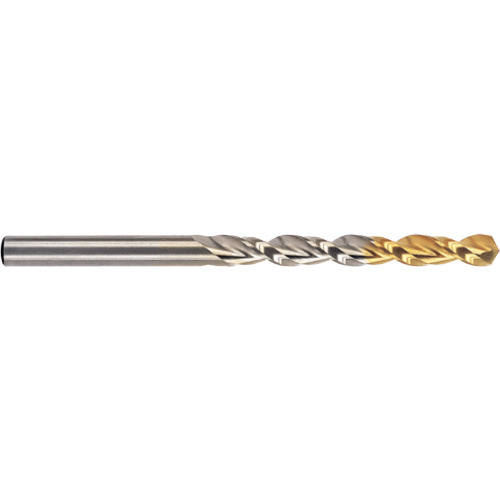

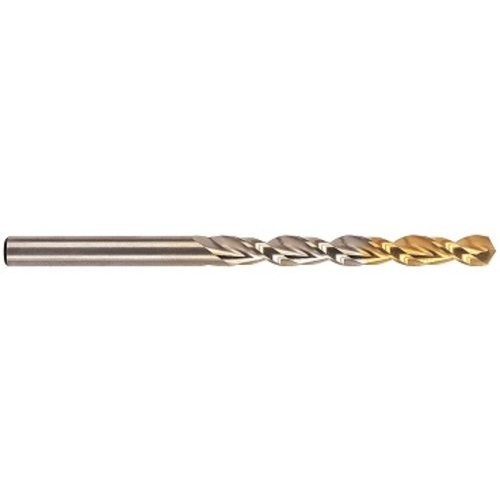

NO.41 M35 JL GOLD-P
Jobber Drill; #41 Dia. × 0.096″ Shank Dia. × 2-3/8″ OAL × 1-3/8″ Flute Length ; 130 Degrees ; Jobber ; Parabolic Flute ; HSSCo5 ; TiN ; Series DLGP512
| Drill Bit Size / Cutting Diameter (DC) | #41 | Coolant Supply Property (CSP) | External |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.096″ | Flute Length | 1-3/8″ |
| Decimal Equivalent | 0.096″ | Helix Angle | 38 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.438 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #41 | Standard | ANSI |
| Measurement Type | Wire Gauge | Connection Diameter Machine Side (DCONMS) | 0.096″ |
| Angle | 130 Degrees | L Group | Jobber |
| Cutting Edge Material | HSSCo5 | Series/List # | DLGP512 |
| Flute Type | Parabolic | Flute Count (NOF) | 2 |
| Applicable Material | | Steel | | Overall Length (OAL) | 2-3/8″ |
| Coating | TiN |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.75
Package Width
0.75
Package Height
0.75
Package Weight
0.012
