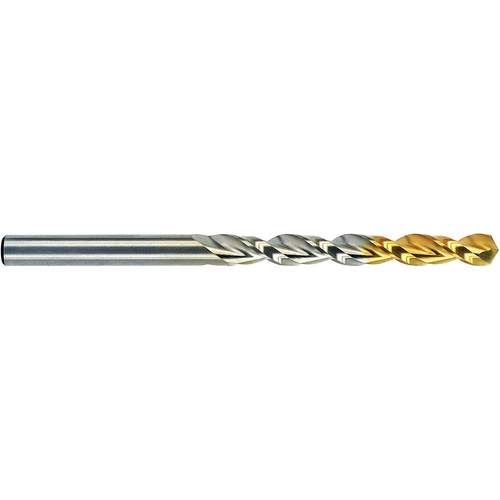

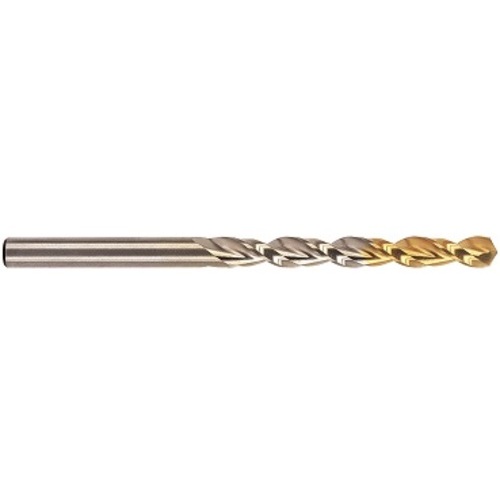

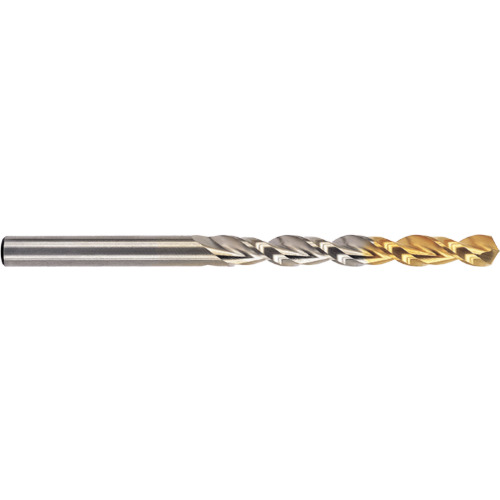

5/32 HSS M35 WORM
Jobber Drill; 5/32″ Dia. × 5/32″ Shank Dia. × 3-1/8″ OAL × 2″ Flute Length ; 130 Degrees ; Jobber ; Parabolic Flute ; HSSCo5 ; TiN ; Series DLGP511
| Drill Bit Size / Cutting Diameter (DC) | 5/32″ | Coolant Supply Property (CSP) | External |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/32″ | Flute Length | 2″ |
| Decimal Equivalent | 0.1563″ | Helix Angle | 38 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.969 mm | Shank Type | Round |
| Measurement Type | Inch | Standard | ANSI |
| Angle | 130 Degrees | Connection Diameter Machine Side (DCONMS) | 5/32″ |
| Cutting Edge Material | HSSCo5 | L Group | Jobber |
| Flute Type | Parabolic | Series/List # | DLGP511 |
| Applicable Material | | Steel | | Flute Count (NOF) | 2 |
| Coating | TiN | Overall Length (OAL) | 3-1/8″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.5
Package Width
1
Package Height
1
Package Weight
0.142
