5/16 135D SPL PT CO JL

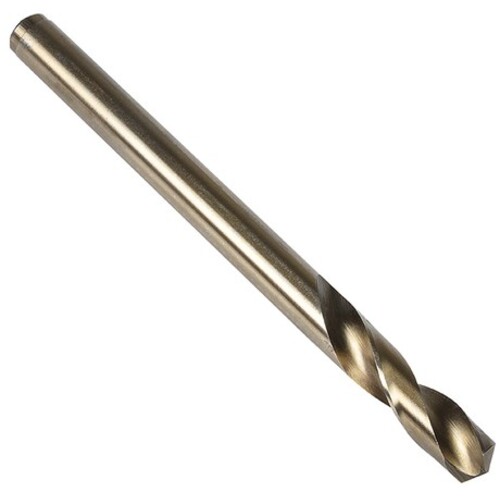

Jobber Drill; 5/16″ Dia. × 4-1/2″ OAL × 1-5/8″ Flute Length ; 3xD ; HSSCo ; Bronze Oxide ; Series R88CO
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 5/16″ | Helix Angle | CW |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/16″ | Shank Type | Round |
| Decimal Equivalent | 0.3125 | Standard | NAS 907 |
| Measurement Type | Inch | L Group | 3xD |
| Cutting Edge Material | HSSCo | Shape | Solid Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Tool Radius | 135 Degrees |
| Coating | Bronze Oxide | Series/List # | R88CO |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 4-1/2″ |
| Flute Length | 1-5/8″ |
Product Features
| Family Description | E-code # R88CO5/16 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.999
