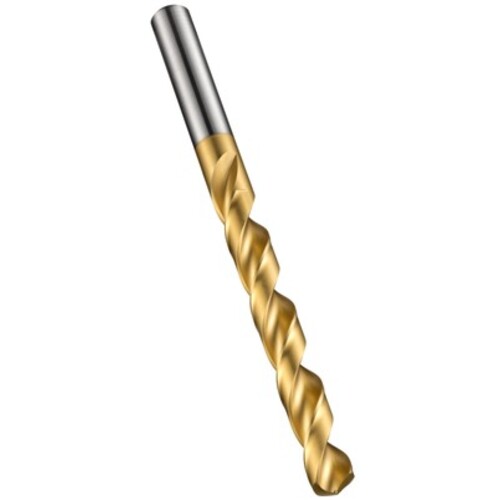

9/64″ HSS Parabolic Drill - 4xD - DIN 338 - TiN - 130 Degree Point E-code # A5109/64
Jobber Drill; 9/64″ Dia. × 9/64″ Shank Dia. × 70 mm OAL × 39 mm Flute Length ; 130 Degrees ; 4xD ; Parabolic Flute ; HSS ; TiN ; Series A510
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 9/64″ | Flute Length | 39 mm |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/64″ | Helix Angle | CW |
| Decimal Equivalent | 0.1406 | Shank Type | Round |
| Measurement Type | Inch | Standard | DIN 338 |
| Angle | 130 Degrees | Connection Diameter Machine Side (DCONMS) | 9/64″ |
| Cutting Edge Material | HSS | L Group | 4xD |
| Flute Type | Parabolic | Tool Type | Drill |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Tool Radius | 130 Degrees |
| Coating | TiN | Series/List # | A510 |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 70 mm |
| Cutting Depth | 39 mm |
Product Features
| Family Description | E-code # A5109/64 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.28
