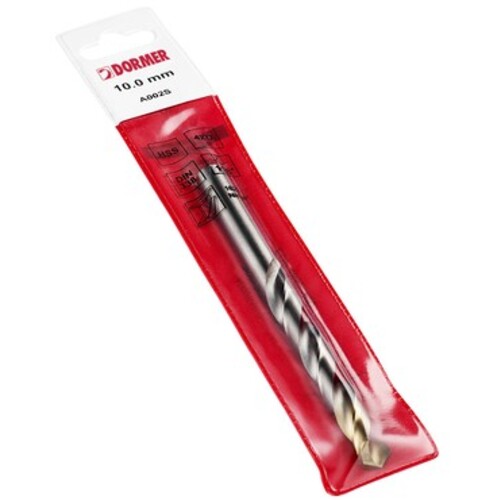

3/8″ HSS Drill - 4xD - DIN 338 - Bright/TiN - 118 Degree Split Point E-code # A002S3/8
Jobber Drill; 3/8″ Dia. × 0.3748″ Shank Dia. × 133 mm OAL × 87 mm Flute Length ; 118 Degrees ; 4xD ; HSS ; TiN ; Series A002S
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 3/8″ | Helix Angle | CW |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/8″ | Point Shape | Split Point |
| Decimal Equivalent | 0.3750 | Shank Type | Round |
| Measurement Type | Inch | Standard | DIN 338 |
| Angle | 118 Degrees | Connection Diameter Machine Side (DCONMS) | 0.3748″ |
| Cutting Edge Material | HSS | L Group | 4xD |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Tool Type | Drill |
| Coating | TiN | Tool Radius | 118 Degrees |
| Coolant Supply Property (CSP) | External | Series/List # | A002S |
| Cutting Depth | 87 mm | Overall Length (OAL) | 133 mm |
| Flute Length | 87 mm |
Product Features
| Family Description | E-code # A002S3/8 | Country of Origin | Brazil |
