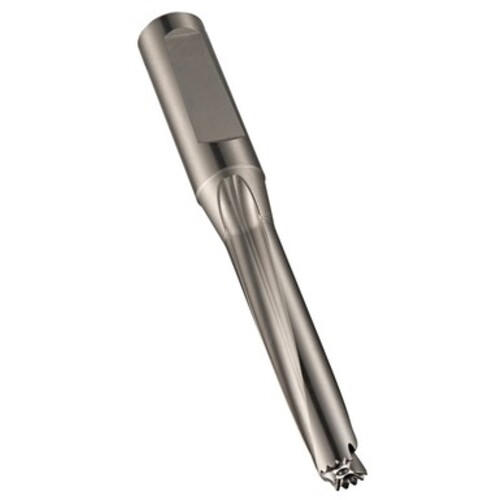

17/32 Dormer HSS Bright HYDRA Int. Coolant Hydra Body 5xD Jobber E-code # H85517/32
Jobber Drill; 17/32″ Dia. × 5/8″ Shank Dia. × 140 mm OAL × 74 mm Flute Length ; 5xD ; HSS ; Uncoated
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 17/32″ | Flute Length | 74 mm |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 17/32″ | Helix Angle | CW |
| Decimal Equivalent | 0.5312 | Shank Type | Weldon |
| Measurement Type | Inch | Standard | DIN 6535 HE / HB |
| Cutting Edge Material | HSS | Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Coating | Uncoated | L Group | 5xD |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 140 mm |
Product Features
| Family Description | E-code # H85517/32 | Country of Origin | Japan |
Shipping Info
Package Weight
6.44
