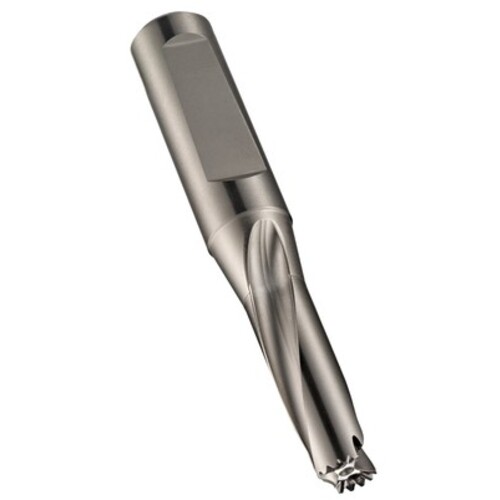

39.50 Dormer HSS Bright HYDRA Int. Coolant Hydra Body 3xD Short DORMER E-code # H85339.5
Jobber Drill; 39.5 mm Dia. × 40 mm Shank Dia. × 231.5 mm OAL × 136.5 mm Flute Length ; 3xD ; HSS ; Uncoated
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 39.5 mm | Flute Length | 136.5 mm |
| Decimal Equivalent | 1.56″ | Helix Angle | CW |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 39.5 mm | Shank Type | Weldon |
| Measurement Type | Metric | Standard | DIN 6535 HE / HB |
| Cutting Edge Material | HSS | Connection Diameter Machine Side (DCONMS) | 40 mm |
| Coating | Uncoated | L Group | 3xD |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 231.5 mm |
Product Features
| Family Description | E-code # H85339.5 | Country of Origin | Japan |
Shipping Info
Package Weight
30
