NO 16 135D SPL PT CO JL

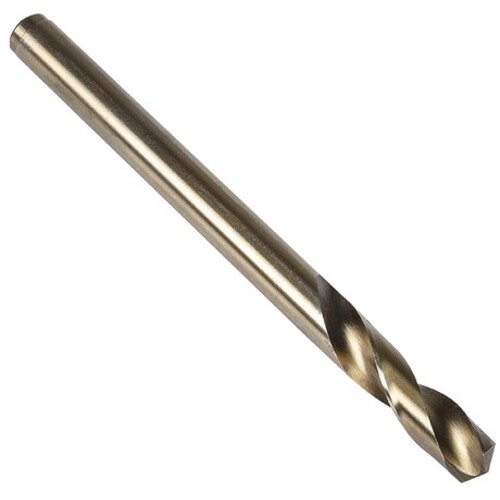

Jobber Drill; #16 Dia. × 3-3/8″ OAL × 1-1/8″ Flute Length ; 3xD ; HSSCo ; Bronze Oxide ; Series R89CO
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | #16 | Helix Angle | CW |
| Decimal Equivalent | 0.1770 | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #16 | Standard | NAS 907 |
| Measurement Type | Wire Gauge | L Group | 3xD |
| Cutting Edge Material | HSSCo | Shape | Solid Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Tool Radius | 135 Degrees |
| Coating | Bronze Oxide | Series/List # | R89CO |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 3-3/8″ |
| Flute Length | 1-1/8″ |
Product Features
| Family Description | E-code # R89CON16 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.999
