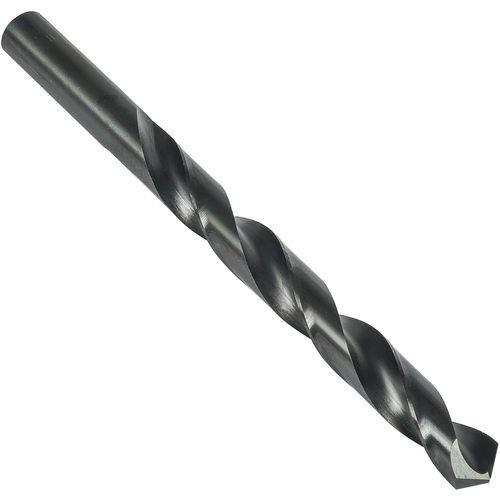

9/32″ HSS Drill - 4xD - ANSI - Black Oxide - 135 Degree Point E-code # A1769/32T
Jobber Drill; 9/32″ Dia. × 9/32″ Shank Dia. × 4-1/4″ OAL × 2-15/16″ Flute Length ; 135 Degrees ; 4xD ; HSS ; Black Oxide ; Series A176
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 9/32″ | Flute Length | 2-15/16″ |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/32″ | Helix Angle | CW |
| Decimal Equivalent | 0.2812 | Shank Type | Round |
| Measurement Type | Inch | Standard | ANSI |
| Angle | 135 Degrees | Connection Diameter Machine Side (DCONMS) | 9/32″ |
| Cutting Edge Material | HSS | L Group | 4xD |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Tool Type | Drill |
| Coating | Black Oxide | Tool Radius | 135 Degrees |
| Coolant Supply Property (CSP) | External | Series/List # | A176 |
| Cutting Depth | 2-15/16″ | Overall Length (OAL) | 4-1/4″ |
Product Features
| Family Description | E-code # A1769/32T | Country of Origin | Brazil |
Shipping Info
Package Weight
0.004
