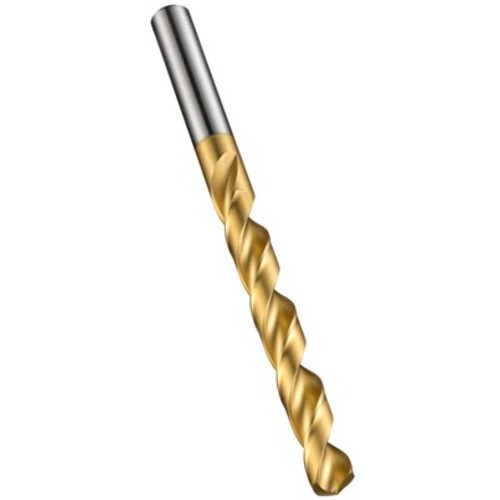

15/32″ HSS Parabolic Drill - 4xD - DIN 338 - TiN - 130 Degree Point E-code # A51015/32
Jobber Drill; 15/32″ Dia. × 0.4689″ Shank Dia. × 151 mm OAL ; 130 Degrees ; 4xD ; Parabolic Flute ; HSS ; TiN ; Series A510
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 15/32″ | Coolant Supply Property (CSP) | External |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 15/32″ | Helix Angle | CW |
| Decimal Equivalent | 0.4688 | Shank Type | Round |
| Measurement Type | Inch | Standard | DIN 338 |
| Angle | 130 Degrees | Connection Diameter Machine Side (DCONMS) | 0.4689″ |
| Cutting Edge Material | HSS | L Group | 4xD |
| Flute Type | Parabolic | Tool Type | Drill |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Series/List # | A510 |
| Coating | TiN | Overall Length (OAL) | 151 mm |
Product Features
| Family Description | E-code # A51015/32 | Country of Origin | France |
Shipping Info
Package Weight
0.218
