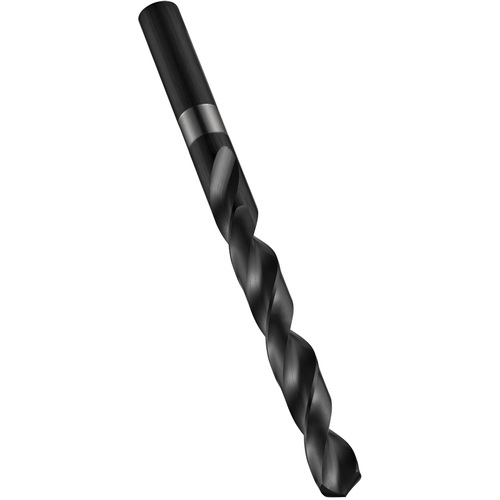

G HSS Drill - 4xD - DIN 338 - Steam Tempered - 118 Degree Point E-code # A100G
Jobber Drill; G Dia. x 0.261″ Shank Dia. × 101 mm OAL ; 118 Degrees ; 4xD ; HSS ; Black Oxide ; Series A100
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | G | Helix Angle | CW |
| Decimal Equivalent | 0.2610 | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | G | Standard | DIN 338 |
| Measurement Type | Letter | Connection Diameter Machine Side (DCONMS) | 0.261″ |
| Angle | 118 Degrees | L Group | 4xD |
| Cutting Edge Material | HSS | Tool Type | Drill |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Series/List # | A100 |
| Coating | Black Oxide | Overall Length (OAL) | 101 mm |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | E-code # A100G | Country of Origin | Brazil |
Shipping Info
Package Weight
0.184
