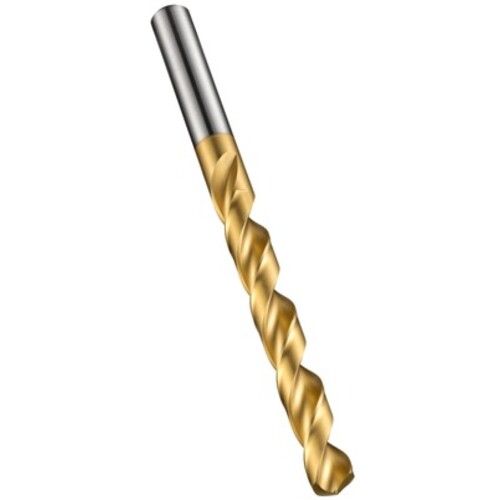

11.1 mm HSS Parabolic Drill - 4xD - DIN 338 - TiN - 130 Degree Point E-code # A51011.1
Jobber Drill; 11.1 mm Dia. × 0.437″ Shank Dia. × 142 mm OAL ; 130 Degrees ; 4xD ; Parabolic Flute ; HSS ; TiN ; Series A510
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 11.1 mm | Coolant Supply Property (CSP) | External |
| Decimal Equivalent | 0.437″ | Helix Angle | CW |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11.1 mm | Shank Type | Round |
| Measurement Type | Metric | Standard | DIN 338 |
| Angle | 130 Degrees | Connection Diameter Machine Side (DCONMS) | 0.437″ |
| Cutting Edge Material | HSS | L Group | 4xD |
| Flute Type | Parabolic | Tool Type | Drill |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Series/List # | A510 |
| Coating | TiN | Overall Length (OAL) | 142 mm |
Product Features
| Family Description | E-code # A51011.1 | Country of Origin | France |
Shipping Info
Package Weight
0.179
