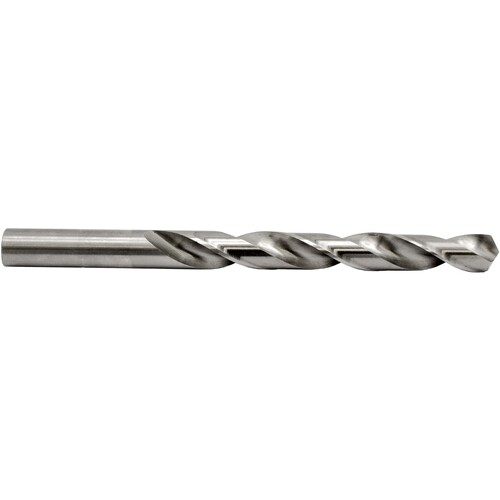

.17mm Dia-3/4 OAL -Surface Treated-HSS-Stnd Jobber
Jobber Drill; 0.17 mm Dia. × 0.17 mm Shank Dia. × 3/4″ OAL × 3/64″ Flute Length ; HSS ; Uncoated
| Drill Bit Size / Cutting Diameter (DC) | 0.17 mm | Flute Length | 3/64″ |
| Decimal Equivalent | 0.0067″ | Point Shape | Standard |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 0.17 mm | Shank Type | Round |
| Measurement Type | Metric | Connection Diameter Machine Side (DCONMS) | 0.17 mm |
| Cutting Edge Material | HSS | Shape | Jobber Drill |
| Coating | Uncoated | Tool Radius | 118 Degrees |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 3/4″ |
| Cutting Depth | 3/64″ |
Product Features
| Remarks | •Metric Jobber Drills •High Speed Steel, 118° Point •Jobbers drills are designed to perform satisfactorily under a wide variety of normal conditions • They will work in a broad range of materials and in various types of drilling equipment, both machine and portable | Country of Origin | USA |
Shipping Info
Package Weight
0.001
