27/64 HSSCO5 PARAB TL

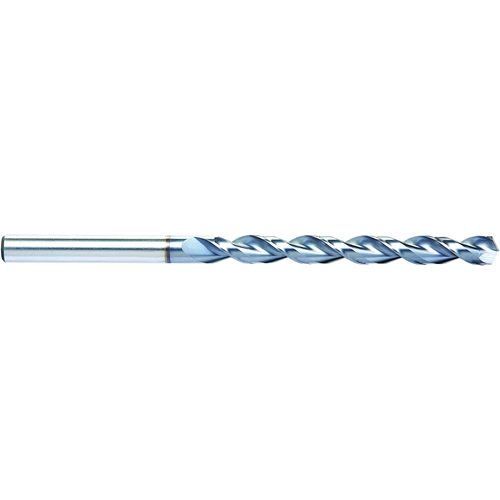

Taper Length Drill; 27/64″ Dia. × 27/64″ Shank Dia. × 7-1/4″ OAL × 4-5/8″ Flute Length ; 38 Degrees ; HSSE ; TiCN ; Series DX517
| Drill Bit Size / Cutting Diameter (DC) | 27/64″ | Flute Type | Parabolic |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 27/64″ | Helix Angle | 38 Degrees |
| Decimal Equivalent | 0.4219″ | Length Group | Regular |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10.716 mm | Measurement Type | Inch |
| Angle | 130 Degrees | Flute Count (NOF) | 2 |
| Applicable Material | | Steel | | Overall Length (OAL) | 7-1/4″ |
| Coating | TiCN | Pack Size | 5 |
| Coolant Supply Property (CSP) | External | Shank Type | Round |
| Cutting Depth | 4-5/8″ | Standard | ANSI |
| Shank Size (SS) | 27/64″ | Tool Type | Taper Length |
| Cutting Edge Material | HSSE | Series/List # | DX517 |
| Flute Length | 4-5/8″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
8.25
Package Width
1.5
Package Height
1.5
Package Weight
0.226
